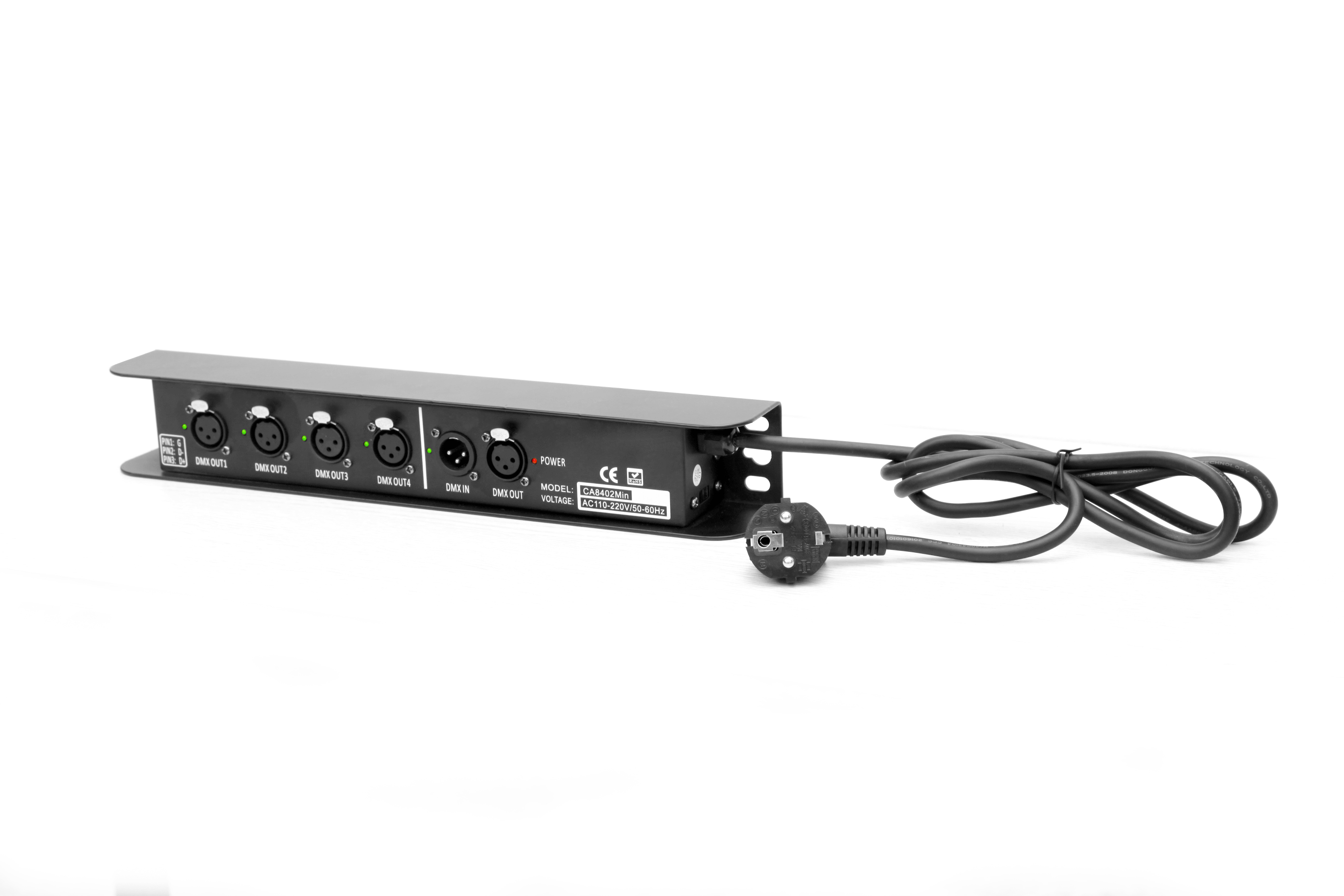

WDMX-4     (DMX DISTRIBUTOR)
DETAIL INFO

 1.Fully compliant to DMX-512 (1990) speciflcation.
 2.Inputs and outputs are true RS-485 rated.
 3.3 pin XLR input and a passive loop through.
 4.4 way isolated DMX splitter output.
 5.Input isolated from outputs over 1000VDC.
 6.Outputs are isolated from each other over 1000VDC.
 7.Power supply, 90~240VAC 50Hz / 60Hz , 15W .
 8.1U high 19 inch rack mount construction.
 9.packing size : 550*400*350mm   17KG(6pcs in one caron)
